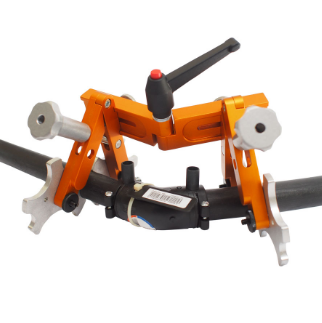

Vari Clamp - Universal - 16 20 25 32 50 63 75

Vari Clamp is designed to hold and straighten pipes before and during the electrofusion process.

Features:

This tool works for pipe diameters between 16mm and 75mm and is also specially designed for pipe connection work.
Different sizes can be selected on each arm to allow the reducer to be clamped.
The ‘Universal’ and ‘variable’ clamp frames can rotate 45 degrees and 90 degrees to form an elbow for clamping.
The ‘variable’ tool has arms that slide on the frame, allowing it to hold wide fittings.
This tool is particularly useful when clamping elbows directly to outlet tapping saddles.

• Operating Range	16mm to 75mm
  Operating Type	Straight, Elbow
  Approvals	UK: GIS/PL2-5
  Size	23 x 15 x 18cm
  Weight	1.3kg
  Operating Temperature	-40C to +50C
  Tool Materials	Steel, Aluminium, Plastic
  Tool Finish	Bright zinc plate, Anodised
