Multi Clamp 3 Way 55mm - 180mm
Regular price
Rp 0
Description

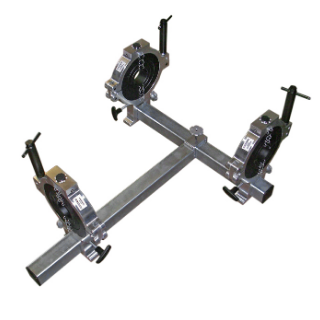

This tool is used for pipes with diameters between 55mm and 180mm, commonly used for electrical installations. The retaining ring rotates to preset positions of 45 degrees and 90 degrees to allow elbows to be held. The liner shell slides in and out of the retaining ring to allow pipes and reducers of different diameters to be held and rerouted. The three-way tool has additional legs that allow tees to be held. These tools are fully adjustable, making them versatile for any installation.
| 3 WAY CLAMP | |
| Operating range | 55mm to 180mm |
| Operating type | Straight, Elbow, Tee |
| Approvals | UK: GIS/PL2-5 |
| Size | 100 x 27 x 70 cm |
| Weight | 16.5 kg |
| Operating temperature | -40C to +50C |
| Tool materials | Steel, Aluminium, Plastic |
| Tool finish | Bright zinc plate, Anodised |
