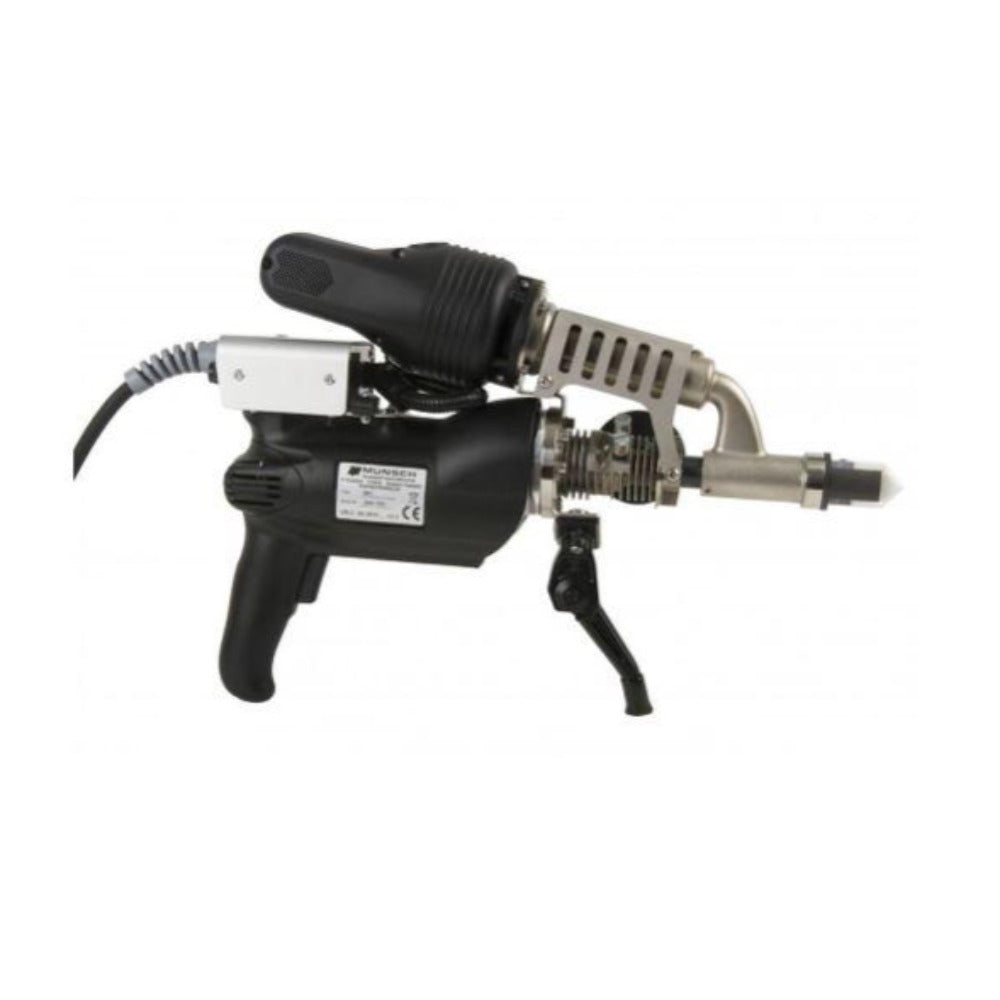

Munsch Extruder MAK-18-S-B

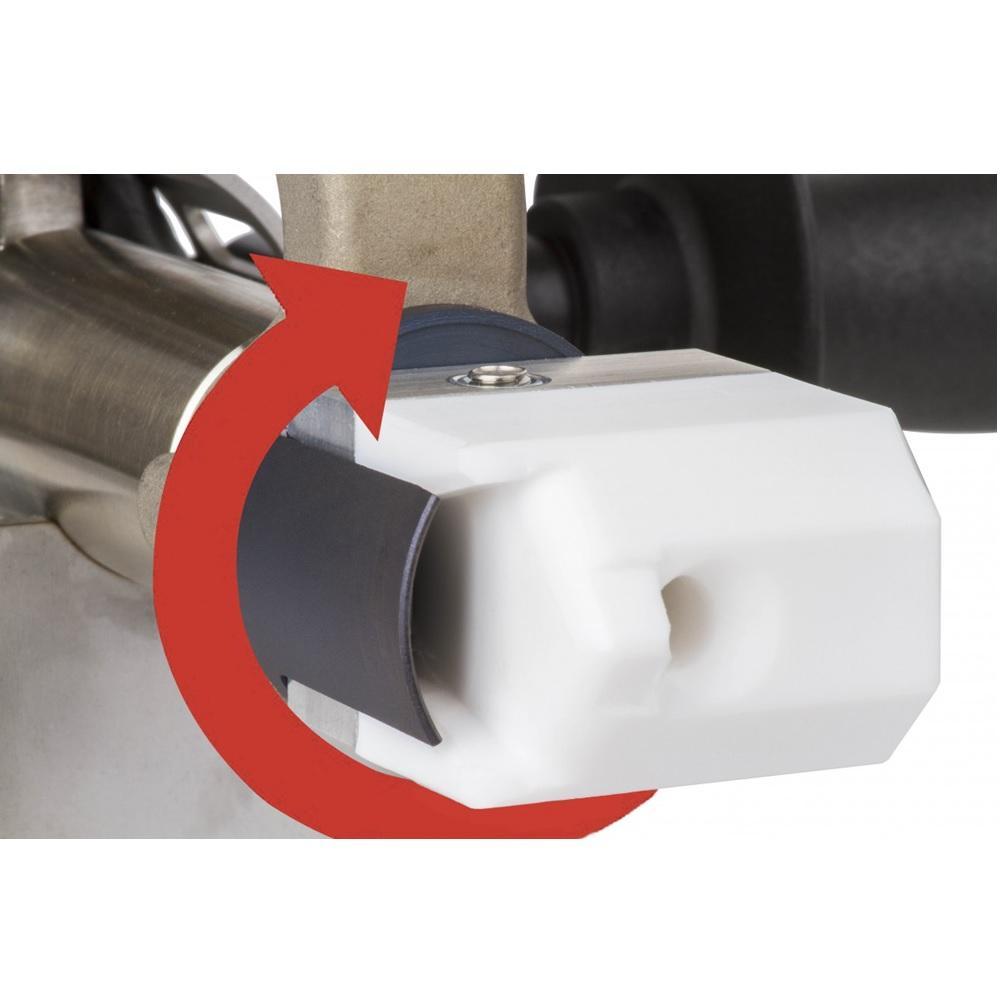

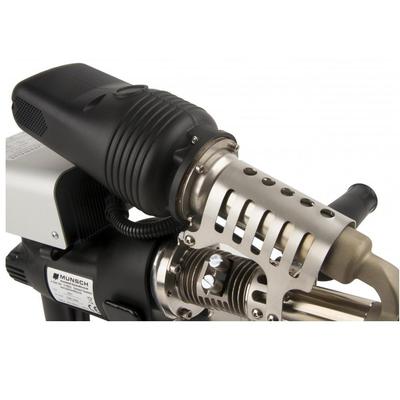

Small, powerful, variable With this digitally controlled extruder, you can easily weld thicknesses of 15 mm or even 20 mm. With a 360° rotatable welding shoe, it is easy to use and the blower can be mounted in 3 different positions (right, top, left).

Max. welding capacity 1.8 kg/h, Ø 4mm

1.1 kg/h, Ø 3 mm

Welding material PP/PE/PVDF

Material type Round rod Ø 3/4mm

Application range Thicknesses from 4 - 15mm

Weight 5.5kg

Length 470mm

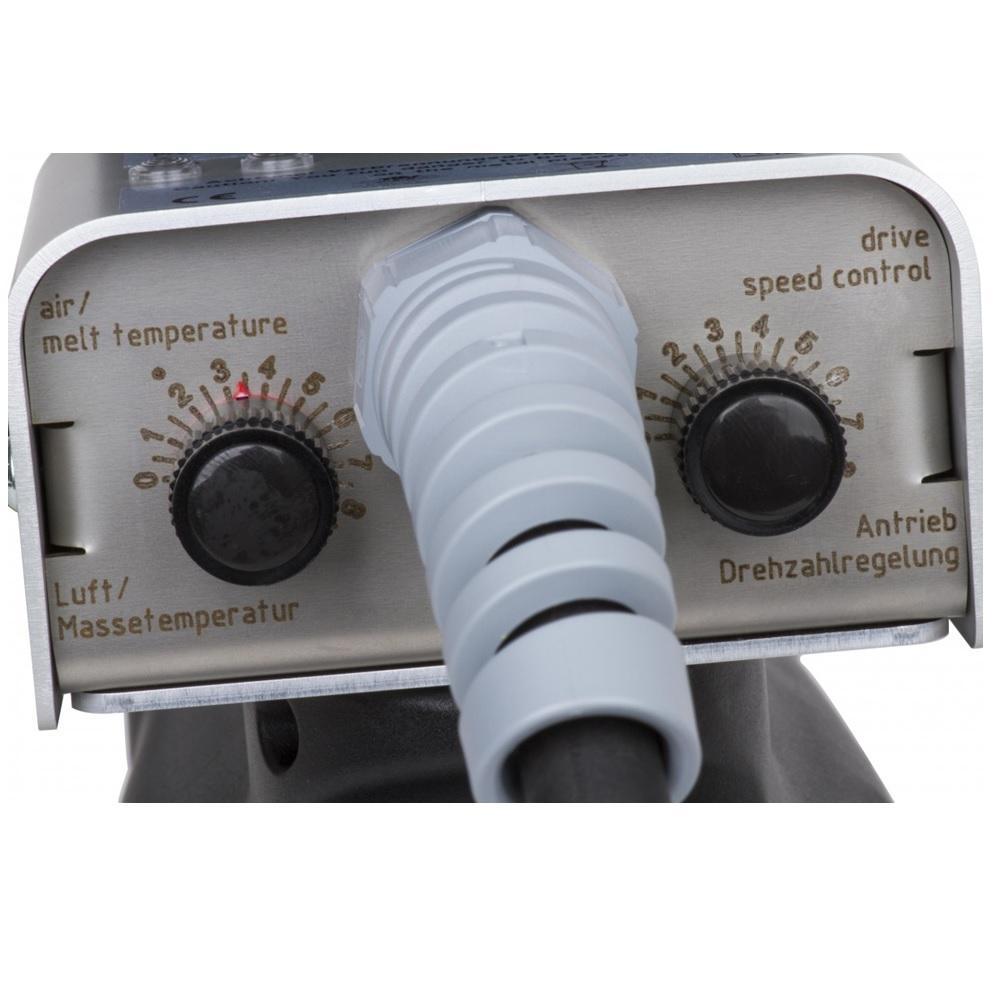

Electronic Speed control Yes

Mass heating 400 W

Powerbox needed No

Preheating 2300W
