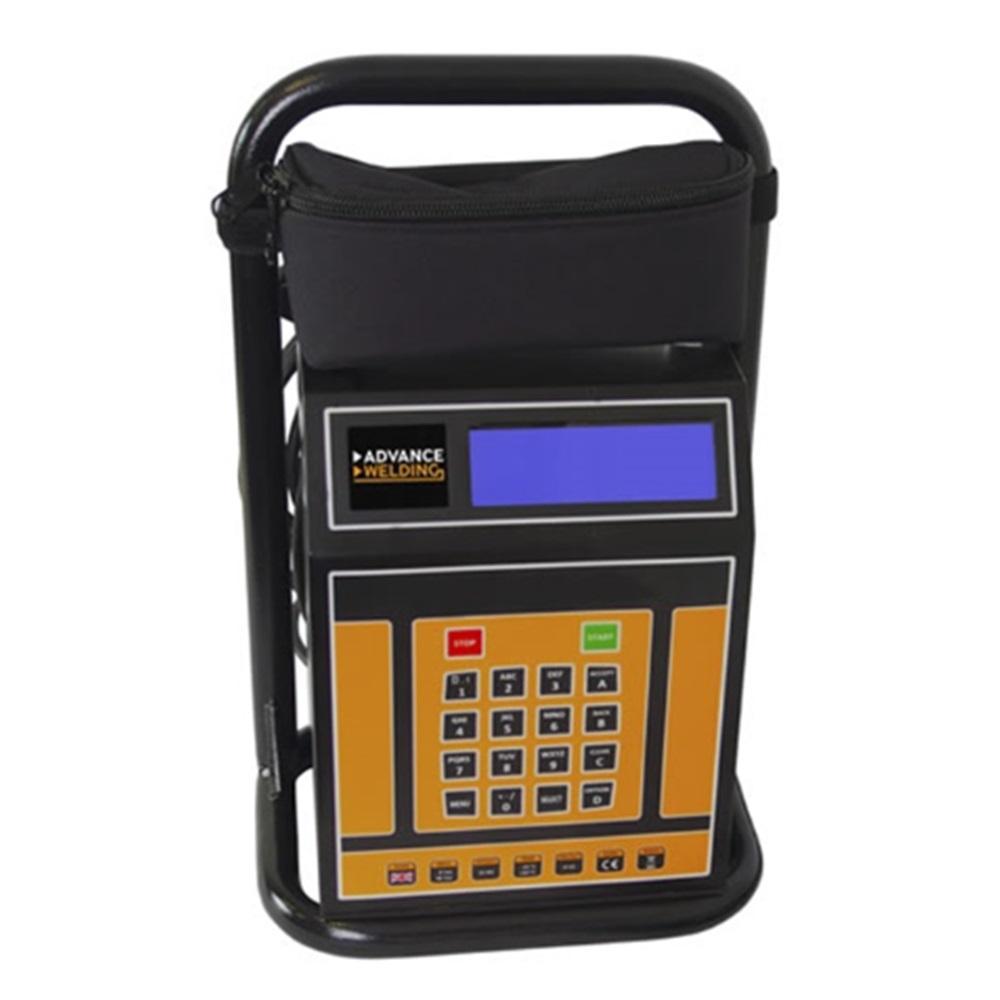

Electrofusion Welder ATS500, 16 - 630mm

SKU: AW26-0670
Pre-order Rp 0
Get a Quote via WhatsApp

Important Notice:

We will fulfill the item as soon as it becomes available. Estimated wait time at 4-8 weeks.

Description

This equipment is designed to weld constant voltage electrofusion fittings suitable for low, medium and high pressure PE or PP pipe work systems from 16mm to 630mm diameter (1/2” to 24”).

The welding output of this equipment is a controlled voltage between 8V and 48V.

It has been designed for harsh construction site use where its rugged design reduces downtime and saves money, yet its small size still makes it easily portable.

It can weld fittings in Manual mode and Bar Code automatic mode, and has a data log memory of more than 2000 welds that can be downloaded using USB memory.

Overview

Safety
  • It fully complies with the international standard ISO12176-2.
  • It is dustproof and waterproof to IP65.
  • It has a safety isolating transformer.
  • It is Class 1 earthed (grounded).
Strength
  • It is built in a strong metal case.
  • It has a steel carrying handle.
  • It has tough rubber cables.
  • It is built for heavy duty usage.
Flexibiltity
  • It has programmable calibration periods.
  • It has programmable modes of operation, Manual and Bar Code.
  • It will work with Operator ID cards.
  • Its software can be upgraded from USB memory.
  • It allows mobile cell phone data transfer.
Usability
  • It has an alphanumeric keypad,
  • It has an easy to read backlit display.
  • It has multi-lingual menus.
  • It displays the welding voltage and current.
  • It displays the supply voltage.
  • It displays the resistance of the connected fitting.
  • It is suitable for use with portable generators.



Specifications

Operating Modes Manual, Barcode
Welding Voltage 39.5V (8-48V)
Welding Current 1-75A (100A peak)
Welding Time 1-6000 seconds
Supply Voltage

115+ 15% 110V (40-60Hz)

230+ 15% 230V (40-60Hz)
Supply Current

1-32A (100A)

1-15A (230V)
Supply Power 4000W

Weight (ATS500)

 20kg

Size

25 x 32 x 37cm
Operating Temp. -15C to 50C
